Panel hardware

These pages record what is physically on each wall panel and how to drive it: SoC, LED control, sensors, buttons, NFC, Zigbee, relays and the route to adb and root. The devices ship with almost no public documentation, so the facts come from live units (rooted, userdebug builds with adb root, or unrooted units over adb), from reporter diagnostics, and from firmware analysis. Each panel page says which of those its facts rest on.

Installing, updating and repairing Panel Assistant needs none of the commands on these pages: that all happens in Home Assistant. The exceptions are two vendor firmware limits: some Sonoff NSPanel Pro firmware hides the debugging switch, and the Tuya TPA10 needs its locked WebView replaced once by hand. Otherwise these pages document the hardware for owners and contributors who want to go further.

If your panel is not listed, start with device profiles, which describe a panel’s hardware without building anything. If your panel has a camera that the Camera card does not offer, see community profiles, and keep any unverified hardware fact marked as such.

Panels

Photo	Panel	Vendor	Model	Android	Support	SOC	Screen	Root	WebView — Ships with	WebView — Can reach	Released

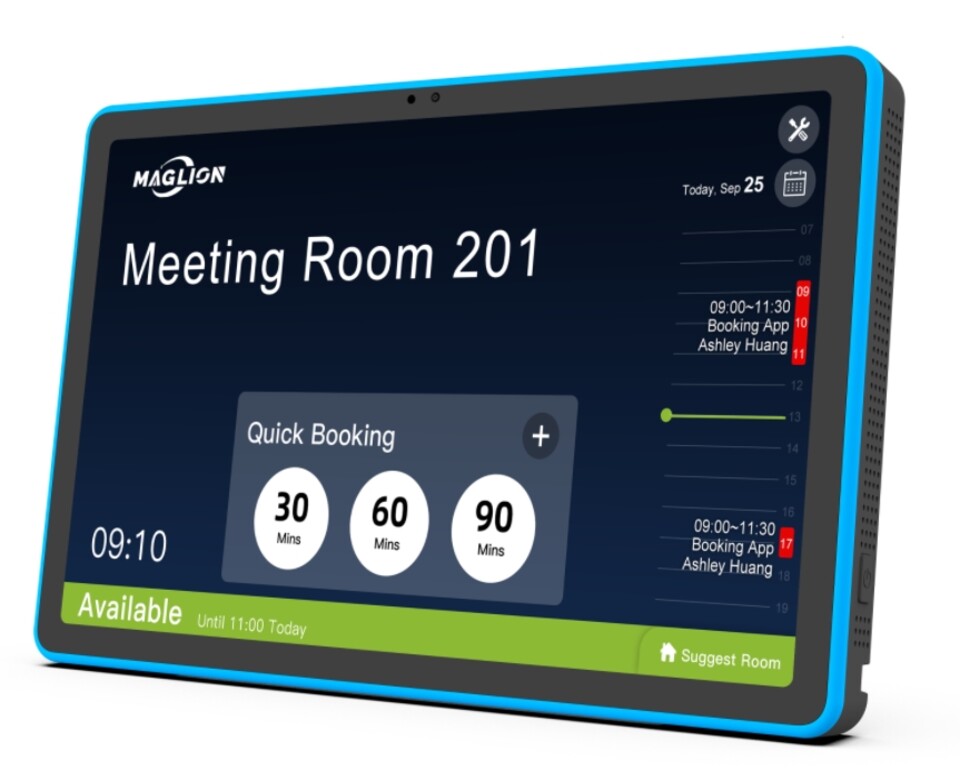

	Electron WF1589TAlso on this page: ELC WF1589T	Electron	WF1589T	14	Full	Rockchip RK3576	10.1 in, 1920 × 1200	userdebug, adb root; su for backlight-off	Google WebView; factory version not established	Current compatible Google WebView through Google Play; no fixed ceiling established	not before 2024 (est., RK3576 SoC)

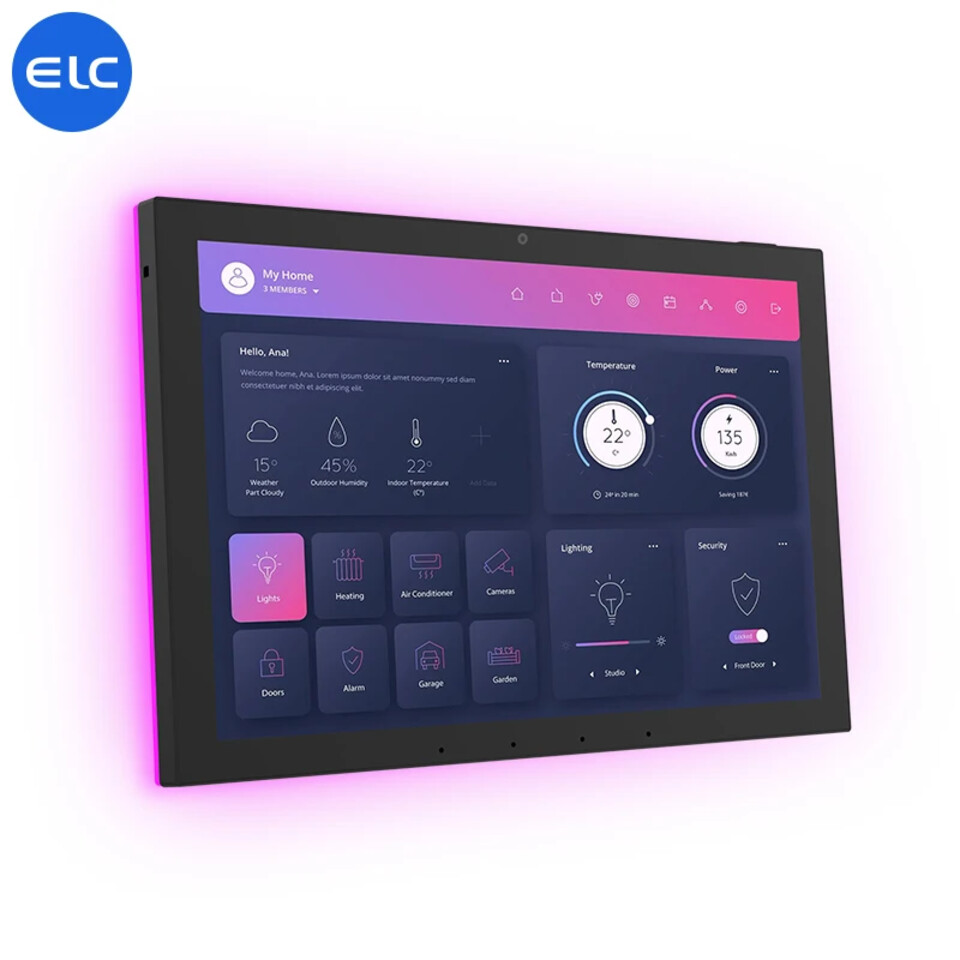

	Electron WF2489TAlso on this page: Apolosign WF2489T, ZHICAI SMT1019, JEESTON 10.1 in wall tablet, Unbranded SMT1019	Electron	WF2489T	14	Community-tested	Rockchip RK3576	10.1 in, 1280 × 800	None on stock; supplier userdebug build rooted	Google WebView 124.0.6367.179 on SMT1019 V1.0A and V2.0 firmware	Current compatible Google WebView through Google Play; no fixed ceiling established
	Meta Portal (1st gen) and Portal+ (1st gen)Also on this page: Meta Portal+ (1st gen)	Meta	Portal (1st gen), Portal+ (1st gen)	9	Untested	Not published	10.1 in, 1280 × 800; Portal+ 15.6 in, 1920 × 1080	No root; Meta's ADB switch is expected to be enough	Not established for this model	Not established — the stock Meta-only restriction is verified on the Portal 10-inch (2nd gen), not this model	2018
	Meta Portal 10" (2nd gen)	Meta	Portal 10" (2nd gen), WD50JM	10	Preliminary	Qualcomm QCS605	10.1 in, 1280 × 800	No root; Meta's ADB switch is enough for setup	Meta WebView, Chromium 131.0.6778.39 on firmware 3051355900018050	Chromium 131 — vendor only on verified stock firmware; no newer qualified provider. This major no longer receives Chromium security fixes	2019
	Meta Portal Go	Meta	Portal Go	10	Untested	Not published	10.1 in, 1280 × 800	No root; Meta's ADB switch is expected to be enough	Not established for this model	Not established — the stock Meta-only restriction is verified on the Portal 10-inch (2nd gen), not this model	2021
	Meta Portal Mini	Meta	Portal Mini	10	Untested	Qualcomm QCS605	8 in, 1280 × 800	No root; Meta's ADB switch is expected to be enough	Not established for this model	Not established — the stock Meta-only restriction is verified on the Portal 10-inch (2nd gen), not this model	2019
	Meta Portal+ (2nd gen)	Meta	Portal+ (2nd gen)	10	Untested	Not published	14 in, 2160 × 1440	No root; Meta's ADB switch is expected to be enough	Not established for this model	Not established — the stock Meta-only restriction is verified on the Portal 10-inch (2nd gen), not this model	2021
	Portworld YC-SM10P	Portworld	YC-SM10P	11	Community-tested

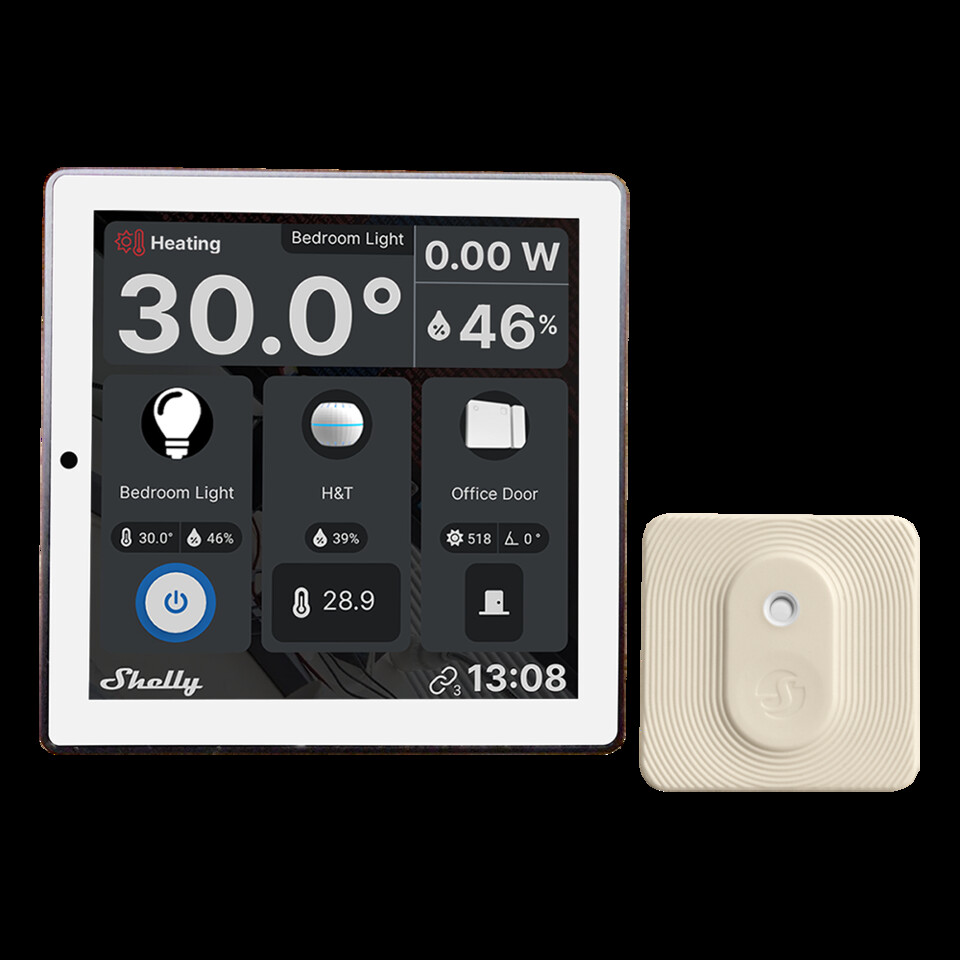

	Shelly Wall Display (original)	Shelly	Wall Display (original)	7.0	Research	MT6580	4 in, 480 × 480	Not established; userdebug base build, unconfirmed	Factory version not established	Chromium 119.0.6045.194 through Shelly’s official WebView ZIP; Android 7 major ceiling	2023-09 (est.)

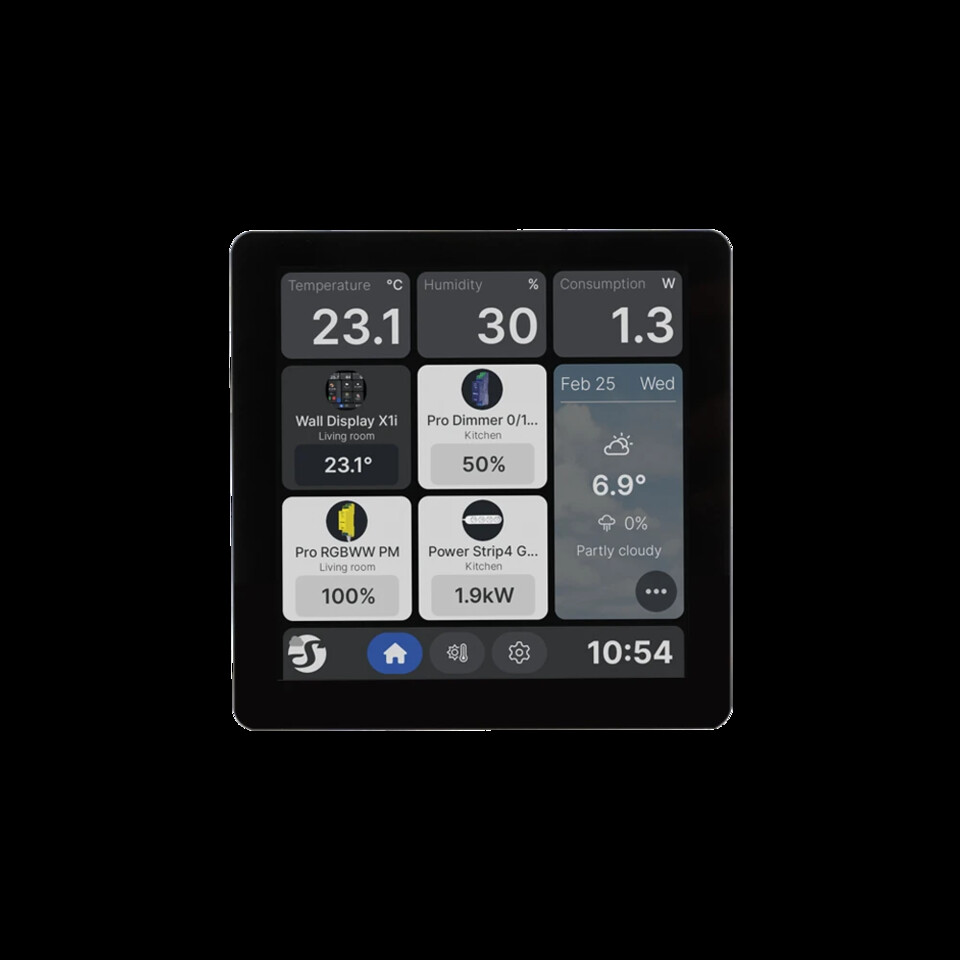

	Shelly Wall Display X1i	Shelly	Wall Display X1i	11	Untested	RK3326-S	4 in, 720 × 720	Not established on this model	Not established	Not established — no verified provider update route for this model	2026-07 (est.)

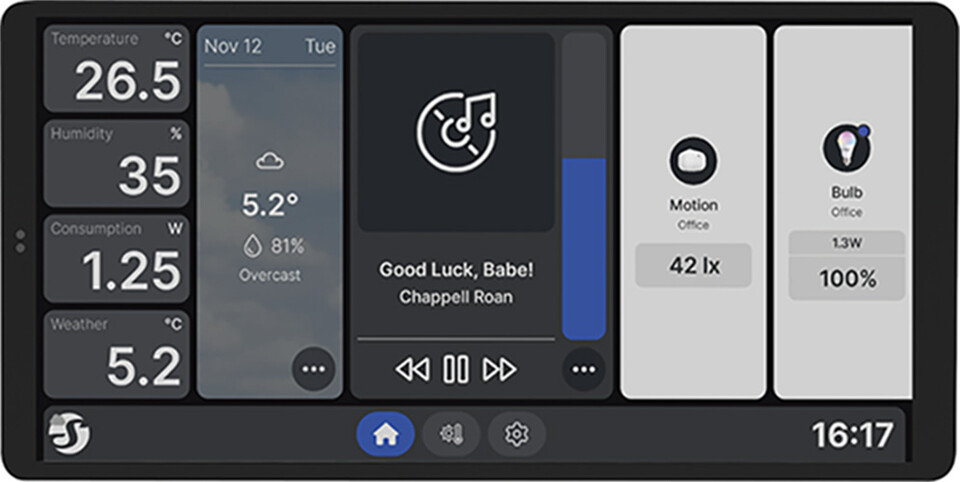

	Shelly Wall Display X2	Shelly	Wall Display X2	8.1	Untested	SC7731E	6.9 in, 1440 × 720	Not established on this model	Not established	Not established — no verified provider update route for this model	2025-01 (est.)

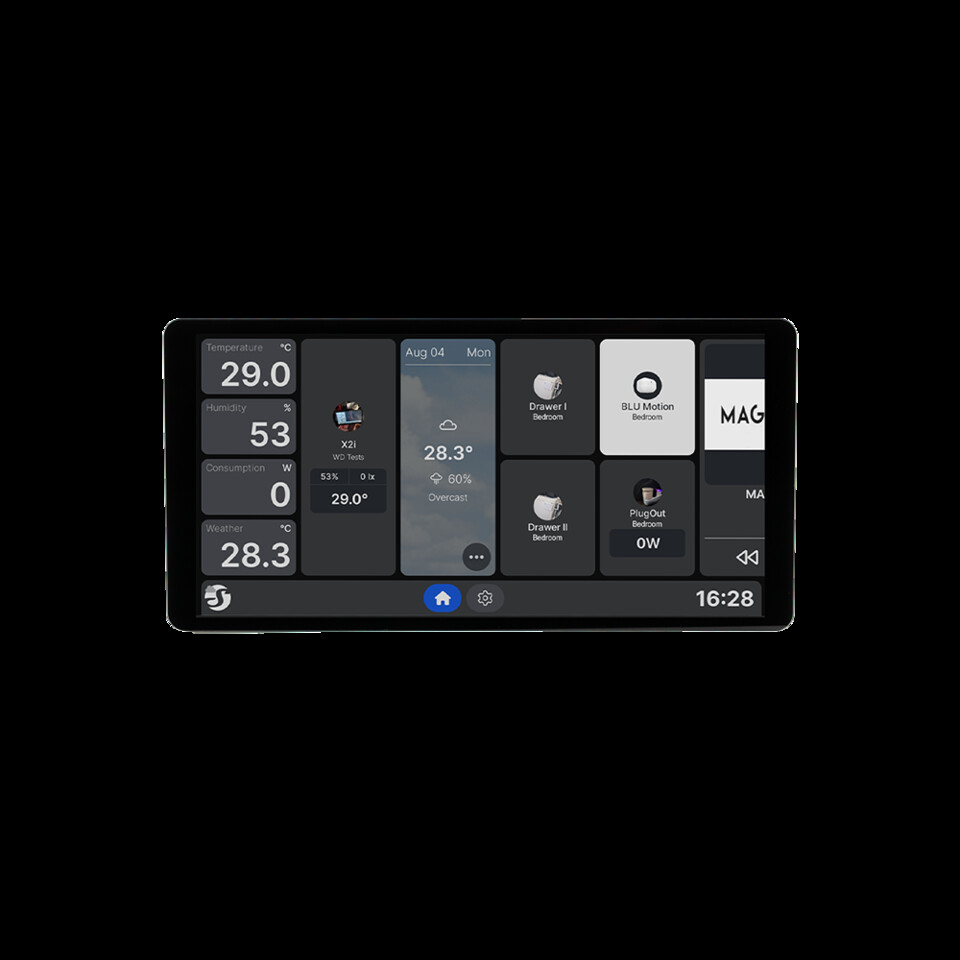

	Shelly Wall Display X2i	Shelly	Wall Display X2i	11	Full	RK3326-S	6.9 in, 1440 × 720	No root needed; setup requires USB debugging, whose unlock depends on firmware	Chromium 131.0.6778.200 on firmware 2.5.4	Chromium 131 — vendor only; no newer Shelly-signed provider available. This major no longer receives Chromium security fixes	2025-12 (est.)

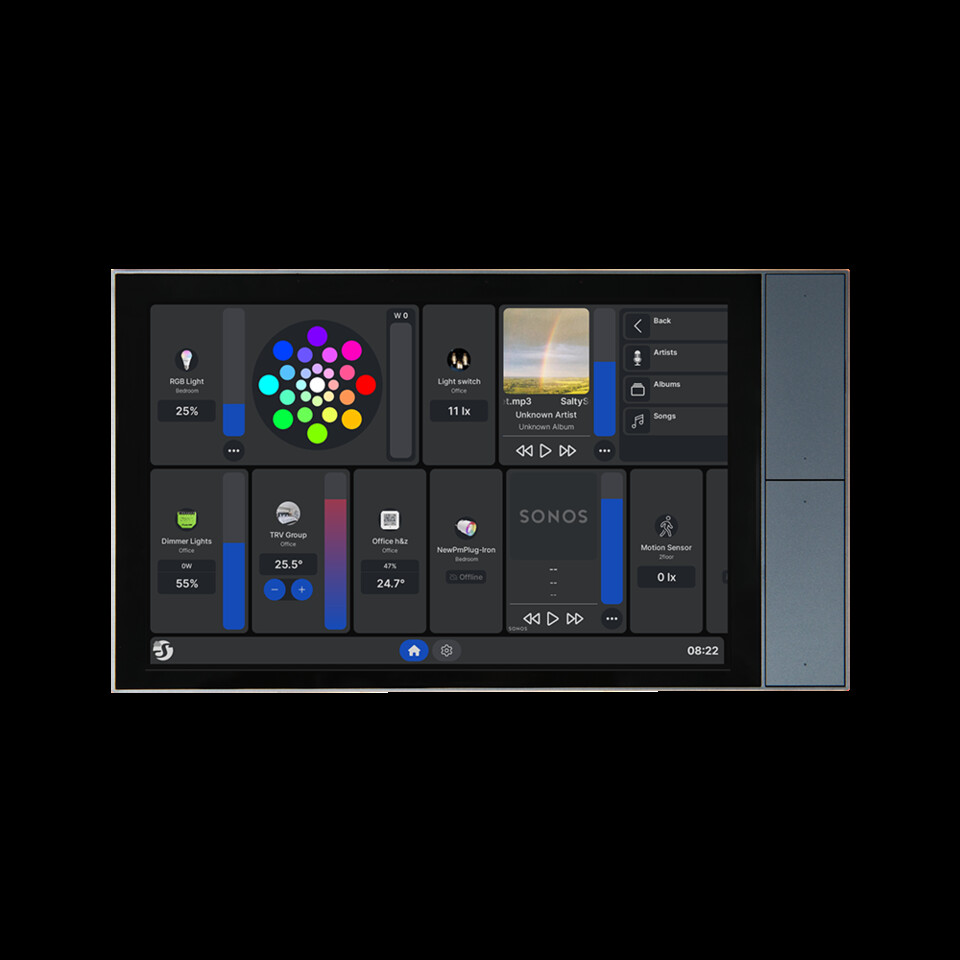

	Shelly Wall Display XL	Shelly	Wall Display XL	11	Untested	RK3566	10.1 in	Not established on this model	Google WebView 131.0.6778.105 on reporter firmware	Not established — installed signer and update route remain unverified	2025-09 (est.)

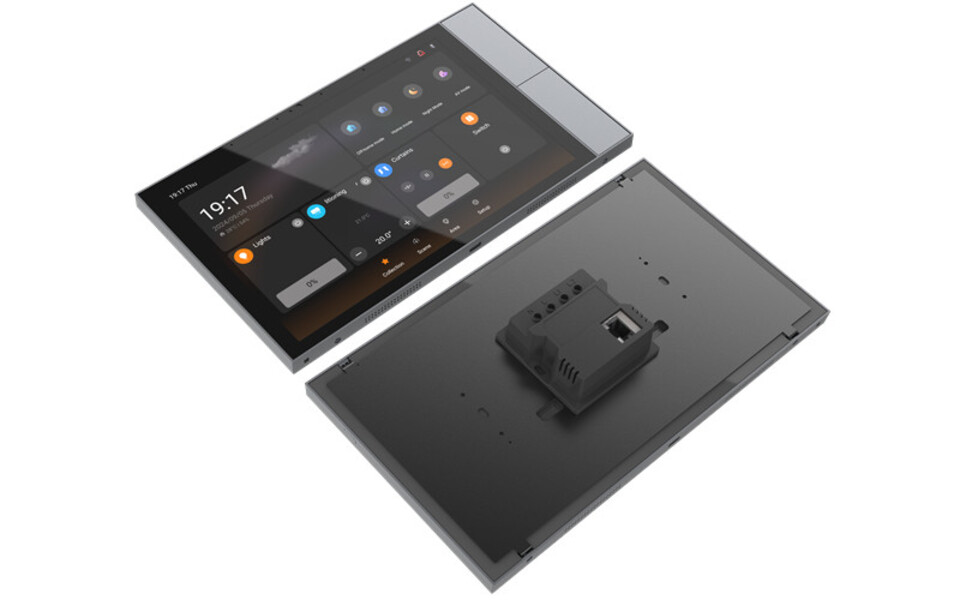

	Smatek S9EAlso on this page: Smatek S9E-NZ, Smatek S9PE-NZ	Smatek	S9E	11	Community-tested	Rockchip RK3566	10.1 in, 1920 × 1200	Relays, button LEDs, proximity (app su reported working)	Chromium 83 on 2024-07 firmware; 131 on 2025-12 firmware	Not established — root and userdebug alone do not verify a replacement	not before 2021 (est., RK3566 SoC)

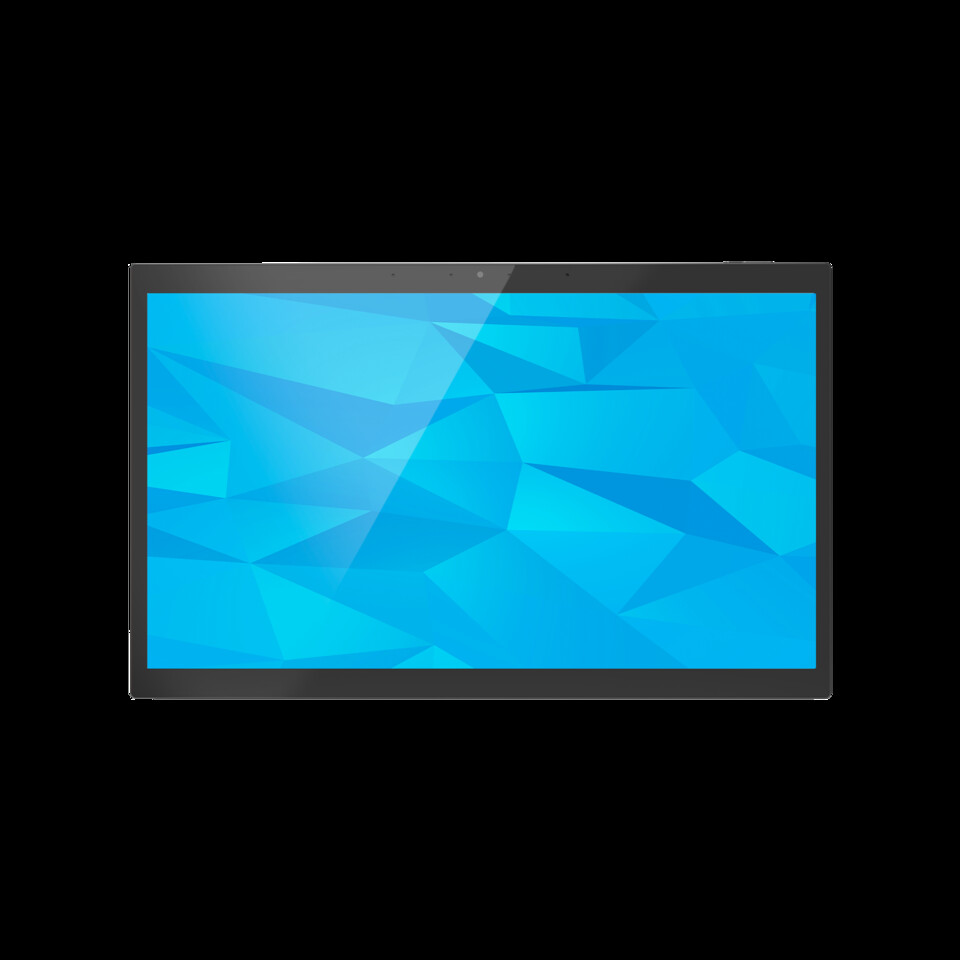

	SMT156Also on this page: ELC SMT156, Unbranded SMT156	Electron (probable)	ZX-SMT156 / RK3566_T	13	Community-tested	Rockchip RK3566	15.6 in, 1920 × 1080	No app su reported; other routes untested	Google WebView 149.0.7827.164 on reporter firmware	Current compatible Google WebView through Google Play; no fixed ceiling established	2025 (est., first listed)

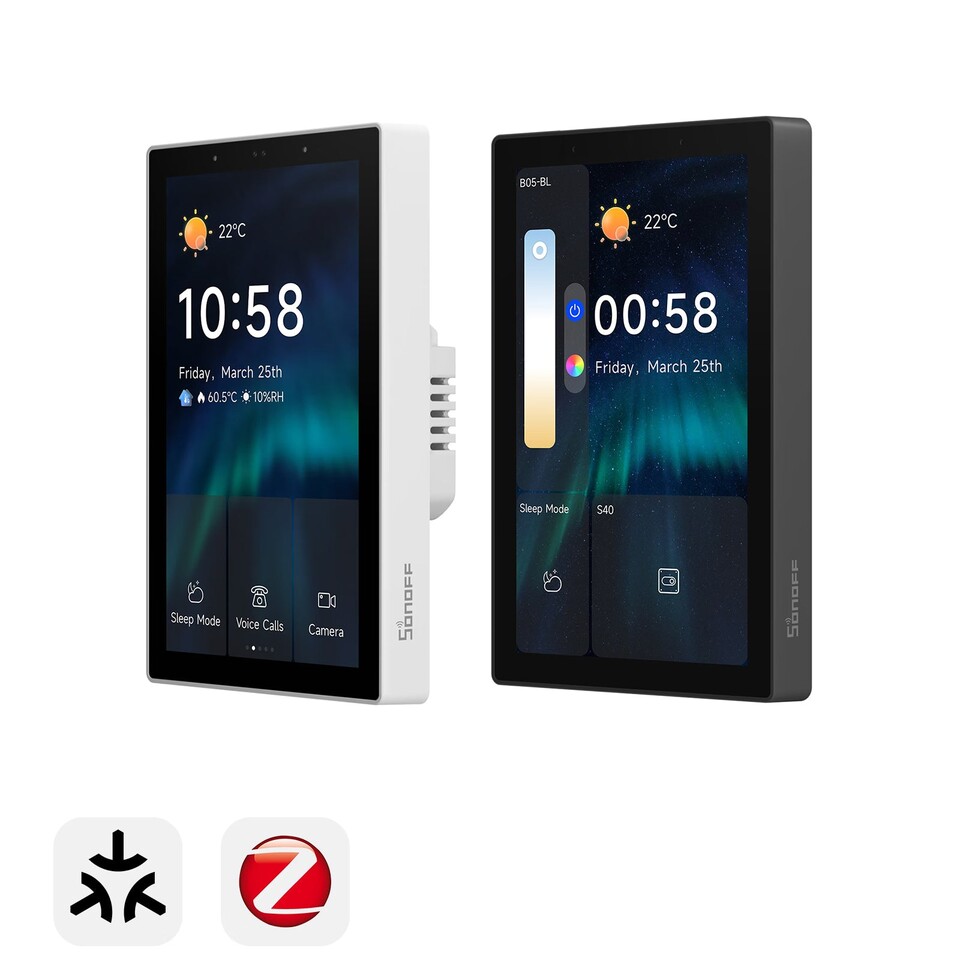

	Sonoff NSPanel Pro 120P	Sonoff	NSPanel Pro 120P	8.1	Full	Rockchip RK3326-S	4.7 in, 750 × 1334, portrait, landscape available	userdebug, no adb password; su for backlight-off	Chromium 129.0.6668.70 on firmware 4.0.12; other firmware not established	Chromium 138 — verified sideload on open userdebug firmware; Android 8/9 major ceiling	2024-08 (est.)

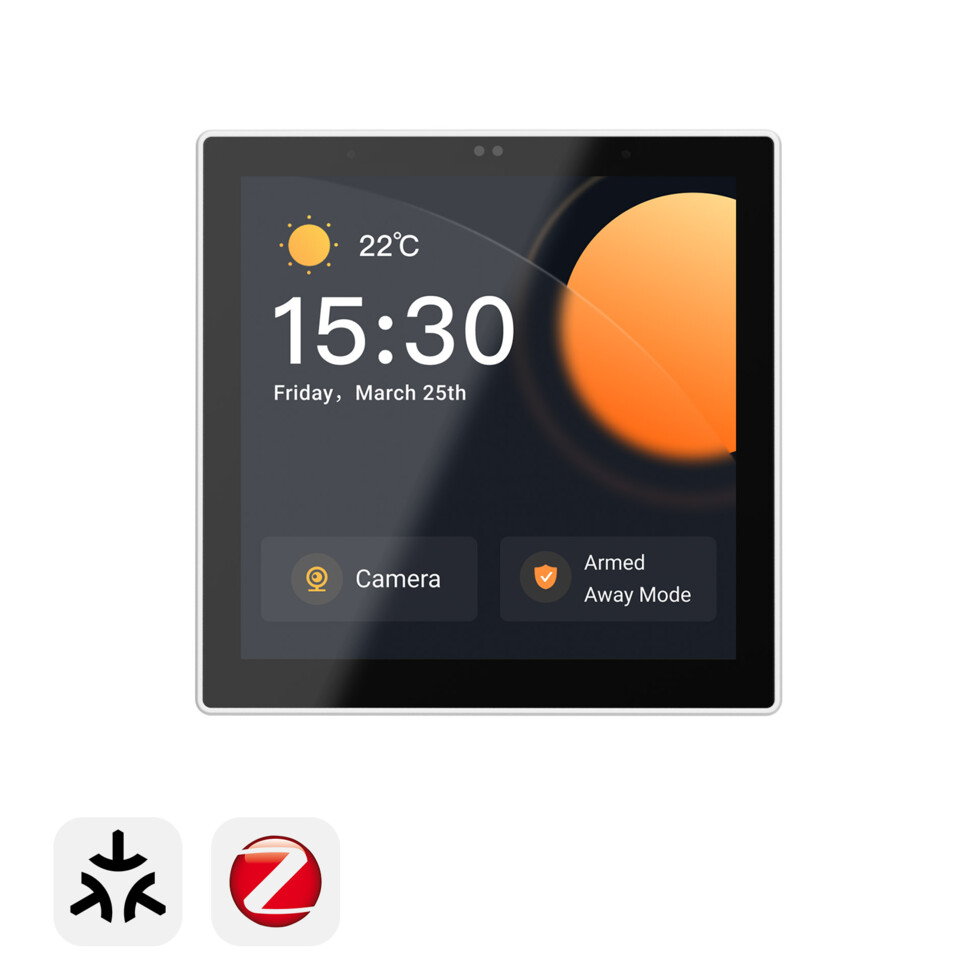

	Sonoff NSPanel Pro 86P	Sonoff	NSPanel Pro 86P	8.1	Full	Rockchip PX30	4 in, 480 × 480, portrait only	userdebug, no adb password; su for backlight-off	Chromium 107 on firmware 1.5.0 and 3.5.1; 131 on 4.0.12	Chromium 138 — verified sideload on open userdebug firmware; Android 8/9 major ceiling	2022-09 (est.)
	Sunworld YC-SM55P	Sunworld	YC-SM55P	14	Community-tested

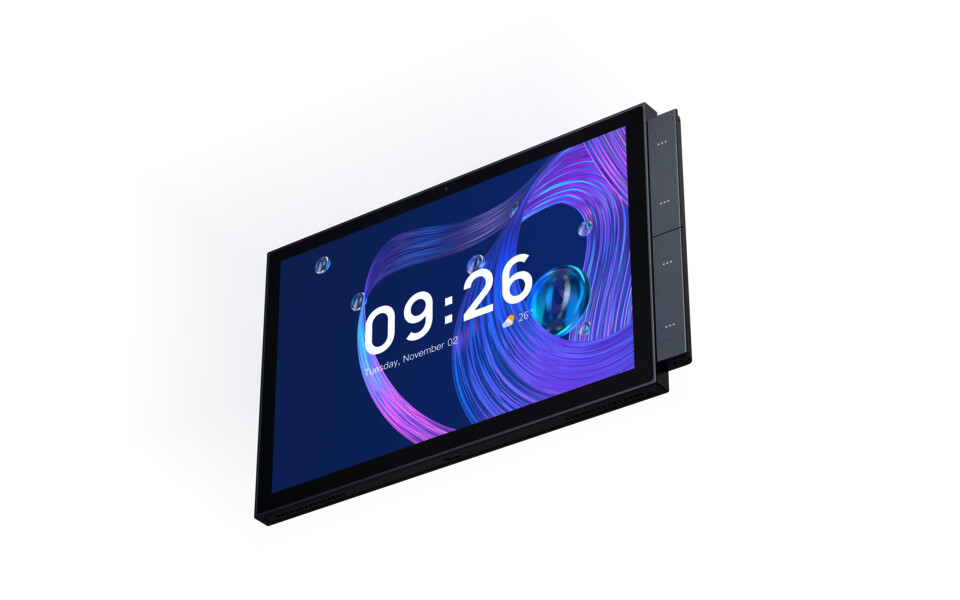

	Tuya TPA10Also on this page: Tuya TPA10-M2, Tuya Control Panel MAX	Tuya	TPA10	11	Full	Rockchip RK3566	10.1 in, 1920 × 1200	su present; helper for LED, climate, 5th button	Chromium 83	Chromium 156.0.8078.47 verified after the initial root swap and a same-signer update; no final ceiling established	2023-08 (est.)

The support column uses these terms: full (inspected on a unit we run, with a verified profile of its own), preliminary (inspected on a unit we run, with its profile still experimental), community-tested (owners run Panel Assistant on it, with no unit of our own), untested (a bundled profile matches it, or is expected to, but no unit has run Panel Assistant yet) and research (firmware and documentation analysis only).

Tip

Before modifying firmware on a rooted Tuya TPA10 or Electron WF1589T, read Firmware backup and restore. Those Rockchip panels use adb reboot loader and rkdeveloptool rather than the usual Android button combination. The guide does not apply to the Shelly family, an unrooted panel or uncharacterised hardware, and it does not yet document a write-ready Maskrom recovery path.

Guides and tools

• Gaining adb and root access: the general picture, with links to each model’s route.
• Updating the system WebView: the most common first-run failure on these panels, with per-panel stock versions and known-working replacements.
• Firmware backup and restore: partition backup over the network and Loader-mode restore for rooted Rockchip panels.
• Firmware: the Sonoff NSPanel Pro firmware index and the flashing procedure.
• Third-party tools: every external tool these pages rely on, and what each is for.

Method

• Real silicon. Bound I²C devices are read from /sys/bus/i2c/devices/*/name, not from …/drivers/. Rockchip board support packages compile in hundreds of optional drivers, so the drivers/ listing over-reports badly.
• Radios. pm list features (nfc, consumerir, bluetooth, ethernet and so on) plus the nodes under /dev.
• Android-exposed sensors. dumpsys sensorservice.
• Control surfaces. /sys/class/leds, /dev, and each LED node’s own attributes. Some panels document themselves, for example the TPA10’s avsux_info and avsux_firmware.

Corrections and additions for other panels are welcome.

The Native navbar mode is enabled per profile, not tied to one manufacturer. The bundled WF1589T profile declares it because that firmware’s Android navigation bar has been verified. Other profiles can enable the same mode once their system bar has been confirmed.

Performance comparison

Three of the fully supported panels form a clear ladder: the Sonoff NSPanel Pro (PX30) is entry level, the Tuya TPA10 (rk3566) is mid-range and the Electron WF1589T (rk3576) is the most capable. Screen geometry is the first design constraint, and on the 2 GB panels RAM is the binding one. Figures come from the panel app’s own performance report and the device specifications.

Specification ladder

	NSPanel Pro (PX30)	TPA10 (rk3566)	WF1589T (rk3576)
CPU	4× Cortex-A35 at 1.5 GHz	4× Cortex-A55 at 1.8 GHz	4× A72 at 2.1 GHz plus 4× A53 at 1.9 GHz
RAM	2 GB	2 GB	4 GB
GPU	Mali-G31	Mali-G52 (2EE)	Mali-G52 (MC3)
Display	480×480 square, about 4 in	1920×1200 16:10, about 10.1 in, about 226 ppi	1920×1200 16:10, about 10.1 in, about 226 ppi
Refresh	60 Hz	56 Hz	60 Hz
Layout	base logical 160 dpi, 480×480 dp	base logical 240 dpi; 212 recommended	base logical 160 dpi, 1920×1200 dp, so the UI is tiny until you raise the density
Camera	none	GC05A2, Facing: Back; H.264 via OMX.rk.video_encoder.avc	GC05A2, Facing: Front; H.264 via c2.rk.avc.encoder
Class	entry level	mid-range	high

Live snapshot

This is illustrative, not a controlled benchmark: each panel under its own real workload.

	PX30 (mostly idle)	WF1589T (active dashboard)
CPU	9 %	29 %
Clock	408 MHz (of 1512)	big cores 1608 MHz (of 2112)
RAM used	508 / 1960 MB	2265 / 3897 MB
Temperature	49 °C	63 °C
Responsiveness	smooth, main thread 3.6 %	smooth, main thread 25.9 %

The TPA10 sits between the two on CPU.

Practical deployment

• Screen geometry is the first design constraint. The NSPanel Pro’s 480×480 square (480 dp) fits only a single narrow column. The TPA10’s 10.1 in 1920×1200 display is roomy enough for multi-column dashboards. The WF1589T ships at a low base logical density, so its UI is tiny until raised. Design the dashboard to the panel’s dp canvas and aspect ratio, not its raw pixel count. Android’s base logical DPI is a layout setting, not physical PPI.
• On the 2 GB panels (PX30, TPA10), RAM is the binding constraint. The dashboard WebView, Android and any background apps share about 2 GB. Heavy dashboards with many cards, large images, long history graphs or expensive custom cards trigger WebView reloads and jank. The WF1589T’s 4 GB largely removes this pressure.
• The NSPanel Pro has the slowest CPU of the three (Cortex-A35), so transitions and animations are visibly slower than on A55 or A72 units. Keep its dashboards the leanest.
• With the built-in renderer, filter the Home Assistant entity subscription before simplifying a dashboard or replacing the panel. Automatic entity learning keeps unrelated states from reaching the WebView while the panel’s normal Home Assistant connection stays as it is. See Performance tuning.
• The panel app measures the remaining bottlenecks. Dashboard response time, unexpected reloads, CPU clock and throttling, memory pressure, the busiest processes and WebView rendering metrics help separate hardware limits from an expensive dashboard or excessive data.
