Shelly Wall Display (original)

Note

Research only: no unit of this model has been tested. See the Wall Display family page for sourcing, the firmware OTA mechanism, access model and security notes shared across the whole line.

Caution

Ships Android 7.0, which is below the minimum Android version Panel Assistant supports.

The original Wall Display, firmware codename Stargate, is the entry model of the Shelly Wall Display family: a 4 in 480×480 panel on a MediaTek MT6580, Android 7. It is on the legacy WallDisplay (armeabi-v7a) OTA track, alongside the X2.

Initial debugging access

Network ADB on TCP port 5555 without a computer: not established on this model. Initial USB debugging and the vendor-menu unlock are also unverified here. The X2i procedure is confirmed on the X2i only; shared firmware does not prove that it works here. Ask Shelly for the procedure for your model and firmware. Debugging access would not make it installable: Android 7.0 is below the minimum Panel Assistant supports, so no install route applies to this model.

Also sold as

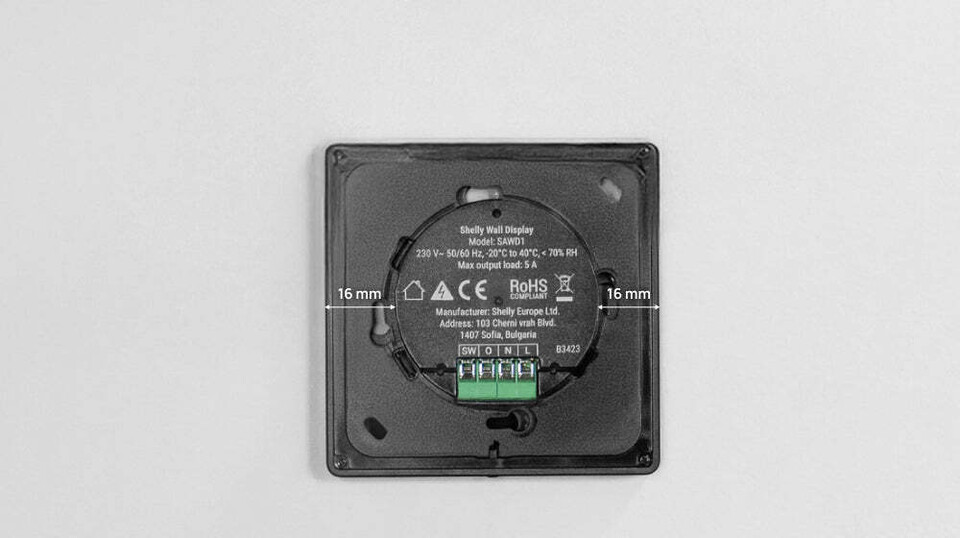

Shelly Wall Display, SAWD-0A1XX10EU1, firmware codename Stargate, device ID k400_mt6580_32_n.

SoC	MediaTek MT6580
Display	480×480 square, 4 in
Android	7.0
ABI	armeabi-v7a
Sensors	Temperature, humidity and ambient light documented; Android API exposure unverified
Relay	1 output
WebView	Not in the standard OTA; Shelly publishes a separate ZIP installing com.google.android.webview 119.0.6045.194
Root	Not established on this model. The OTA declares a userdebug base build (alps/full_k400_mt6580_32_n/...:7.0/.../userdebug/test-keys), so adb root may work if an adb connection can be established, though this is unconfirmed on a unit.
Released	About September 2023 (est.); Shelly first showed the Wall Display at IFA Berlin in September 2023 (coverage of Shelly’s IFA Berlin 2023 lineup, Maison et Objet Domotique)

See the Wall Display family page for the full access-model reasoning, the OTA update endpoints (WallDisplay track) and the firmware version history.

Source

Shelly Wall Display knowledge base.
