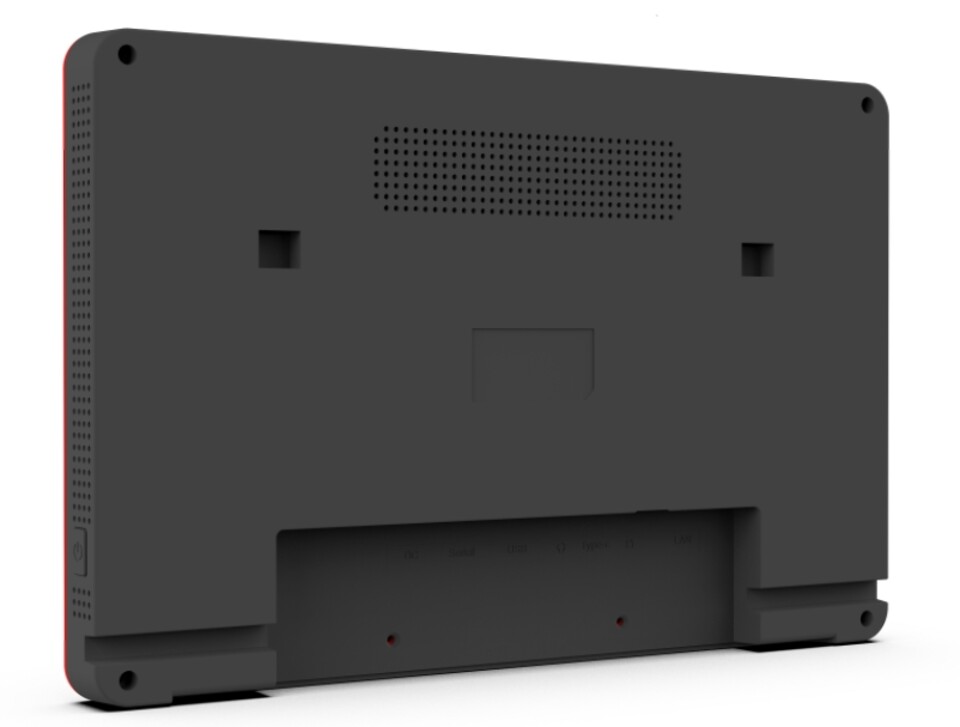

Electron WF1589T

The most capable of the fully supported panels: a 10.1 in 1920×1200 (about 226 ppi) rk3576 unit with 4 GB of RAM, an app-direct RGB LED that needs no root, a 6-axis motion sensor suite and Google Play services, so WebView and apps update themselves. Its firmware also provides Android’s own navigation bar. NFC silicon is present but inert. Reverse-engineered on a live unit (Android 14 userdebug, adb root).

Also sold as

Electron WF1589T, WF1589T, rk3576_u (the model string the profile matches), ro.product.device=WF1589T, vendor packages com.elclcd.otaupdater (ELC) and com.gulukai.pwmlightdemo. The ZHICAI SMT1019 is built on the sibling Electron WF2489T board and has its own page.

Tip

The most-needed facts: it is userdebug, so adb root just works. The LED is the one that needs no root path (/dev/ledjni, world-writable). Google Play is present, so no WebView sideload is needed. The bundled profile offers Native navbar mode. The stock UI is physically tiny until you raise the display density.

SoC	Rockchip rk3576 (ro.board.platform=rk3576, ro.product.device=WF1589T)
Display	1920×1200 (16:10), about 10.1 in, about 226 physical ppi, 60 Hz. The Android factory base logical density of 160 dpi is independent of physical PPI; raise the logical density for a larger touch UI (see below)
Android	14, userdebug (adb root available; su present)
Google services	Google Play services and the Play Store are present (unlike the NSPanel Pro and TPA10), so WebView and apps update through Play; no WebView sideload needed
ABI	arm64-v8a
Navigation	Android’s own Back, Home and Recents bar; the bundled profile enables the panel app’s Native navbar mode
Radios	Wi-Fi (with Wi-Fi Direct and Passpoint), Bluetooth and BLE. No Zigbee, IR or cellular.
Released	Not confidently dated; Rockchip’s rk3576 did not reach the market until roughly 2024, the best lower bound found for this panel (roadmap coverage, CNX Software, November 2023)

Tip

Changing firmware on a button-less panel? Read Firmware backup and restore first. The WF1589T (rk3576, Android 14, 58.24 GB eMMC mmcblk1, updater com.elclcd.otaupdater) uses adb reboot loader and rkdeveloptool; its Maskrom test-point has not been located.

Gaining adb and root access

The WF1589T ships as a userdebug build with Google Play, so adb root works directly and su is present, with no password and no backdoor. The LED is app-direct (below), so root is rarely needed at all.

adb root                     # userdebug → root adbd shell
adb shell su 0 id            # uid=0 → root confirmed

Danger

The WF1589T has an OTA updater (com.elclcd.otaupdater) that can revert your changes. Once adb is enabled, disable it (reversibly) with adb shell pm disable-user --user 0 com.elclcd.otaupdater. See Stop unwanted updates.

WebView: already handled by Play

The WF1589T has Google Play, so unlike the NSPanel Pro and TPA10 you do not sideload a WebView. Update Android System WebView from the Play Store, or use the Play WebView development channel, and it is current. See Updating the system WebView for the picture across panels.

Native Android navbar

The WF1589T firmware draws its own Back, Home and Recents bar. Its bundled profile therefore offers Native navbar mode, which leaves those controls to Android and draws no overlay or reveal strip. The capability is enabled per profile rather than tied to this model in code, and other profiles can declare it once their firmware’s navigation bar has been verified. Fullscreen renderer settings and Android dashboard lock can still hide the system bar.

Display density: raise it

At the factory base logical density (160 dpi), Android renders at roughly 1 dp to 1 px, so buttons, text and dashboard cards come out physically tiny and hard to touch. The base value is Android’s layout reference, not the panel’s 226 physical PPI. The panel app’s recommended density for this panel is 212 dpi, a verified starting point; adjust it to suit your room and dashboard:

adb shell wm density 212        # ha-paneld starting point; `wm density reset` restores the 160-dpi base

At 212 dpi the effective canvas is approximately 1449×906 dp. A higher value makes the touch UI larger and shows less dashboard content; a lower one does the reverse.

LED: /dev/ledjni (app-direct, no root)

/sys/class/leds has no RGB node (only mmc1::). The front RGB LED is driven through a character device that is world-readable and writable and labelled device, which SELinux lets apps access, so a normal app drives it without root or a helper daemon. This is the one panel class where the LED needs no root path.

The panel app drives it through Rk3576LedController, and publishes the LED entity only where /dev/ledjni opens.

The factory com.gulukai.pwmlightdemo package also opens this device. Its boot-started foreground service continuously cycles the LED through seven colours, overwriting the panel app’s commands and making Home Assistant’s last commanded state differ from the physical LED. The device protocol has no state read-back, so two applications cannot share truthful control. The WF1589T profile therefore marks this demo as recommended to disable in the Vendor packages UI, where disabling it remains a deliberate, reversible action.

/dev/ledjni node and ioctl protocol

/dev/ledjni   crwxrwxrwx  system system  u:object_r:device:s0

The ioctl protocol was reverse-engineered clean-room from the vendor sample, and no vendor binary is bundled; see led_jni.c:

int fd = open("/dev/ledjni", O_RDONLY | O_NOCTTY);
ioctl(fd, 0xa1, R);   // red,   0..15
ioctl(fd, 0xa2, G);   // green, 0..15
ioctl(fd, 0xa3, B);   // blue,  0..15
ioctl(fd, 0x99, 0);   // off
close(fd);

Sensors: 6-axis motion sensors through SensorManager

Unusually for a wall panel, the WF1589T exposes a full motion suite through the standard SensorManager, with no root: accelerometer, gyroscope, gravity, linear_acceleration and game_rotation_vector. The backing chips are a Kionix KXTJ9 and a Bosch BMA2xx accelerometer. No TYPE_LIGHT or TYPE_PROXIMITY is exposed, because none is fitted.

No ambient light, proximity, temperature or humidity sensor is bound on this board (compare the TPA10, which has all four). Presence sensing here is motion-only, through the motion sensors.

Bound I²C devices

Note

Rockchip’s board support package compiles in hundreds of optional drivers, for every camera, codec and motion sensor it supports, so listing /sys/bus/i2c/drivers/ over-reports wildly. Everything below comes from bound devices (/sys/bus/i2c/devices/*/name), meaning silicon actually on this board.

I²C address	Driver or name	What it is
0-0014	gt9xx	Goodix capacitive touch controller
0-0038	fts_ts	FocalTech touch (secondary or alternative controller present)
2-0022	fusb302	USB-C Power Delivery controller
2-0051	hym8563	RTC
1-0023	rk806	Primary PMIC
3-0010	es8388	Audio codec (speaker, line)
3-0032	ES7202_PDM_ADC	PDM microphone ADC
4-0037	gc05a2	GalaxyCore GC05A2 camera (about 5 MP)
7-000e	gs_kxtj9	Kionix KXTJ9 accelerometer
7-0018	bma2xx_acc	Bosch BMA2xx accelerometer
7-0028	nxpnfc	NXP NFC controller (see below)

Camera

GalaxyCore GC05A2 (I²C 4-0037 in the table above), a 2592×1944 sensor. Android reports one camera at LIMITED hardware level, BACKWARD_COMPATIBLE only, Facing: Front, with no flash and no autofocus, through the internal/0-1 provider. A second external/0-0 provider is present with no devices attached, and the panel declares android.hardware.camera.external.

1280×720 is offered in all three formats, IMPLEMENTATION_DEFINED, YUV_420_888 and BLOB. The HAL advertises a one-frame stall for a 720p BLOB capture at 30 fps, but the panel app captures YUV_420_888 and compresses JPEG in software, so that figure does not measure the app’s snapshot cost. android.control.aeAvailableTargetFpsRanges offers only [15 30] and [30 30]: there is no locked 15 fps sensor mode, so a 15 fps stream comes from pacing the encoder, not from the sensor.

The hardware H.264 encoder is c2.rk.avc.encoder, served by the Codec2 HAL (android.hardware.media.c2@1.1-service; there is no OMX media.codec process on this panel). It carries OMX.rk.video_encoder.avc as an alias, so selection by name finds something on both this panel and the TPA10, but they are different components on opposite sides of the OMX-to-Codec2 transition and should not be assumed to behave alike. It declares 176x144 to 4096x2160 at 2x2 alignment, a bitrate range reported as 1 bps to 20 Mbps, and 32 concurrent instances. Unlike the TPA10, this panel also has a hardware HEVC encoder, c2.rk.hevc.encoder, which the panel app does not use.

A panel showing camera cards is not idle. On a measured dashboard the panel app held two live c2.rk.avc.decoder instances, so an encode session competes with existing decode work on the same Rockchip VPU.

The panel app can serve this camera as an experimental feature that is off by default. The Camera switch on the Camera card in Configure turns it on, with Resolution, Frame rate and Bitrate defaults (720p, 15 fps, 2000 kbps) and an Exposure bias. It then serves a video-only H.264 stream at rtsp://<panel>:8554/live and a still at GET /api/v1/camera/snapshot.jpg. Whenever the camera is open, the panel shows a red indicator that page content cannot cover. See the API reference for the stream and status details.

Caution

Do not put a Home Assistant camera card for this panel on this panel’s own dashboard. The panel would decode its own encode in a loop, on the same video engine, for no benefit.

NFC: present but not wired into Android

An NXP NFC controller is bound at i2c-7 0x28 (nxpnfc driver) with a /dev/nxpnfc node (crw------- root root), yet pm list features does not report android.hardware.nfc: the Android NFC service and HAL are not enabled in this firmware. The silicon exists but is inert to apps as shipped. Using it would need an NFC HAL and NfcService, or talking to /dev/nxpnfc directly as root. The panel app does not use it.

Access model summary

• LED: app-direct (/dev/ledjni), no root and no daemon.
• Motion sensors: app-direct (SensorManager).
• NFC: present (NXP) but Android NFC disabled; root only as shipped.
• Navigation: Android’s own navigation bar through the profile’s Native mode.
• Screen brightness, sleep, navigation, text-to-speech: standard Android paths, as on any panel.
