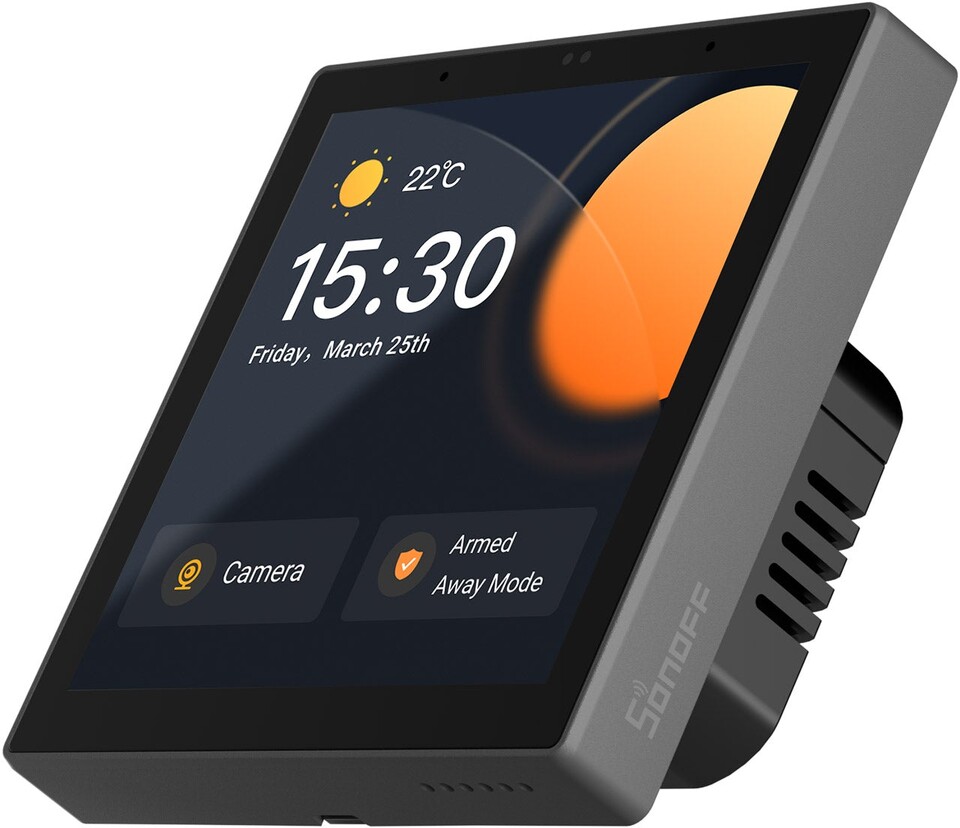

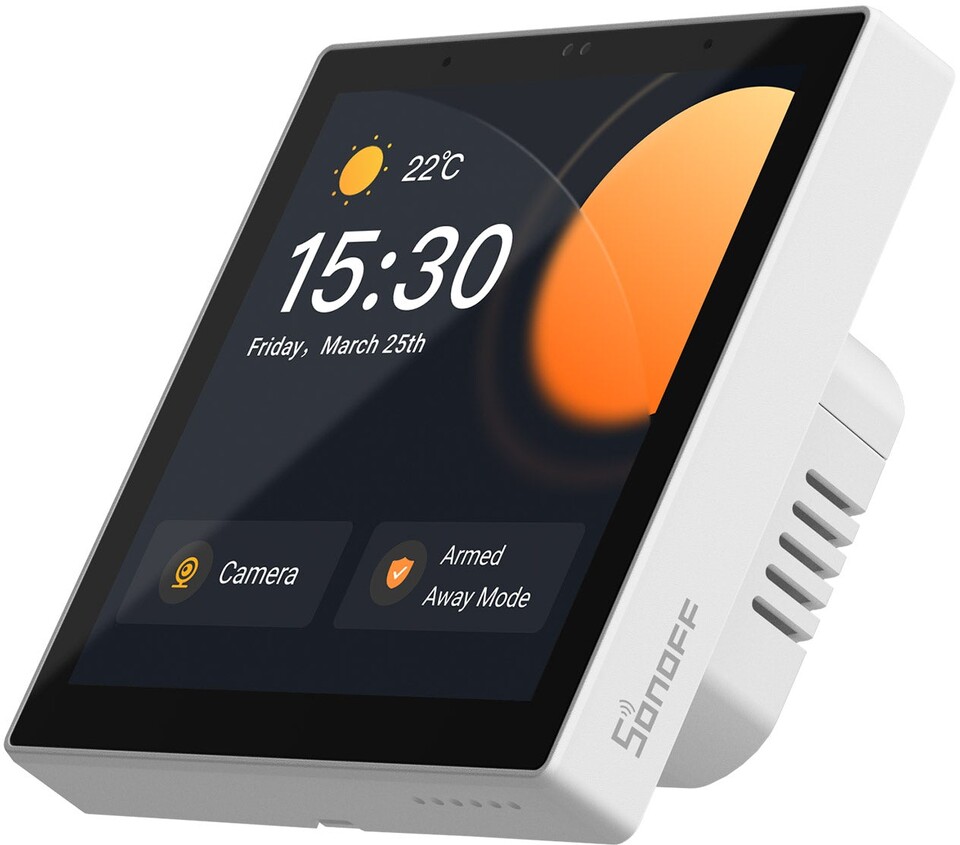

Sonoff NSPanel Pro 86P

The 86P is the square variant of the Sonoff NSPanel Pro line, named for the EU 86 mm wall box. This page carries only its own specification and the facts that differ from the 120P; everything else (root process, WebView update, LED, sensors, Zigbee gateway, firmware quirks) is documented once on the family page, which this page’s sections link back to.

Also sold as

NSPanel Pro 86, NSPanel Pro 86P, NSPanel120P (86P listings occasionally reuse this string), NSPanel Pro Gen1, px30_evb, SN-RKPX30-NSP-01, nspanel-pro. Not to be confused with the NSPanel Pro Gen2 or the Tuya S6E and T6E boards, which are separate hardware.

SoC	Rockchip PX30
CPU	4× Cortex-A35 at up to 1.512 GHz (idles at 408 MHz)
GPU	Mali-G31 (device-confirmed)
Display	480×480 square (1:1), about 4 in, 160 dpi (mdpi, well matched to about 170 physical ppi), 60 Hz, a 480×480 dp canvas
RAM	2 GB (about 1960 MB usable)
Storage	eMMC; /data about 3.5 GB
Android	8.1 (API 27)
ABI	arm64-v8a
Radios	Zigbee 3.0 (Silicon Labs EFR32 coordinator, see the family page), Wi-Fi, Bluetooth. No NFC, IR, Ethernet or cellular.
Released	About September 2022 (est.); pre-orders opened in August 2022 with shipping scheduled from 20 September 2022 (pre-order coverage, CNX Software, August 2022)

ro.product.model and ro.product.device both report px30_evb, a shared Rockchip board name and not a reliable way to tell the 86P from the 120P; ro.product.version reports the 86P-specific s6_android_x.y.z form. OTA ships as a full ROM through 4.0.12; later indexed releases ship as diffs or app-only updates (see the firmware page). The 86P’s proximity firmware restored ranged readings at 4.0.12 (the 120P stayed binary on 4.x); see Sensors on the family page.

Note

The Cortex-A35 is an efficiency core with markedly lower per-clock throughput than the A55 (TPA10) or A72 (WF1589T). With 2 GB RAM, the NSPanel Pro line is the entry-level performer of the three fully supported panels; see the performance comparison.
