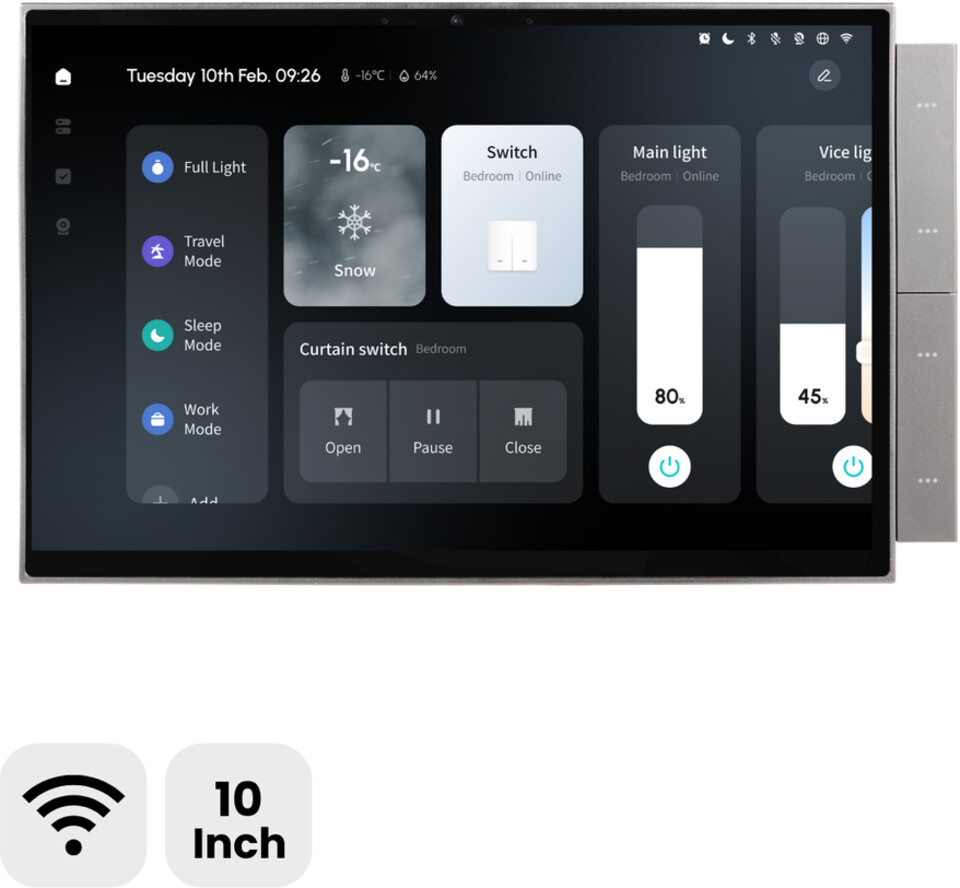

Tuya TPA10

A roomy 10.1 in 1920×1200 rk3566 panel with a single front RGB LED, a monochrome button backlight, a rich sensor set (time-of-flight proximity, temperature and humidity, ambient light), a camera and five physical buttons. It has no Zigbee, NFC or IR. Reverse-engineered on a live unit (Android 11, rooted, su present).

Also sold as

Tuya TPA10, TPA10, TPA10-M2 (M2A, M2E, M2U, M2X), TPA10 Control Panel MAX, Control Panel MAX, Panel MAX, rk3566 Tuya panel, SmartOS Xinch (vendor packages com.smartos.xinch.setting, com.smartos.xinch.hardware, com.smartos.xinch.platform.ethernet), com.tuya.devicetest.

Tip

The most-needed facts: adb is password-protected, so use the USB diagnostics-app backdoor. The LED and the root-only sensors need the hapaneld-helper root helper daemon. The front LED’s custom_animation write can reboot the panel (see the warning below). Update the WebView first; see WebView: update this first.

SoC	Rockchip rk3566
Display	1920×1200 (16:10 landscape), about 10.1 in, about 226 physical ppi, 56 Hz. Android factory base logical density 240 dpi (commonly overridden for dashboard sizing; 212 is recommended)
Android	11 (API 30)
ABI	armeabi-v7a (32-bit userspace)
Radios	Wi-Fi, Bluetooth and BLE, plus a vendor com.smartos.xinch.platform.ethernet feature (wired, PoE). No Zigbee, NFC, IR or cellular.
Root	su available; the LED and sysfs sensors are system:system, so a root helper daemon is required (see below).
Released	About August 2023 (est.); FCC ID 2A789-TPA10, listed as “Control Panel MAX,” was granted around 22 August 2023 (FCC ID 2A789-TPA10 grant record)

Tip

Changing firmware on a button-less panel? Read Firmware backup and restore first. The TPA10 (rk3566, Android 11, 7.28 GB eMMC mmcblk2) has a verified software-entered Loader route through adb reboot loader and rkdeveloptool. The recessed pin-hole button is not a Linux input, and its factory-reset or Maskrom behaviour has not been safely confirmed, so do not rely on it as a recovery route.

Gaining adb and root access

The TPA10 ships with adb password-protected and network adb off. The reliable route to first access is the USB diagnostics-app backdoor, with no password arithmetic. su is already present, so once adb is in you have root. Distilled from seaky/nspanel_pro_tools_apk issue 123.

1. Enable Developer options. Settings, About, tap the build or version number seven times.

2. First access through the USB diagnostics-app backdoor (recommended). Developer options exposes a Tuya engineering diagnostics app with a Chinese-only UI. While that app is open, adb over the USB port is allowed without the password, and the session is already rooted. Connect USB and run:

adb devices          # the panel appears
adb shell su 0 id    # uid=0 → root confirmed

The TPA10’s adb root is more dependable over the USB port than over the network.

3. Make adb persist (root, password-free, the reliable route). With the diagnostics app in the foreground you have a rooted adb session (su is present, and adb root also works because it is a userdebug build). Use it to persist adb so you never need the test app or a password again. This survives the diagnostics app closing and a full reboot, verified on a live unit. Push and run as root:

# persist-adb.sh — run via the diagnostics-app backdoor:
#   adb push persist-adb.sh /data/local/tmp/ && adb shell su 0 sh /data/local/tmp/persist-adb.sh
settings put global adb_enabled 1                   # USB debugging, persisted in /data
settings put global development_settings_enabled 1  # keep Developer options visible
setprop persist.adb.tcp.port 5555                   # network adb on :5555 — persist.* survives reboot

# Pre-authorise each controlling machine so NO on-screen "Allow USB debugging" is needed after reboot.
# Append the contents of every workstation's ~/.android/adbkey.pub (one key per line):
mkdir -p /data/misc/adb
cat >> /data/misc/adb/adb_keys <<'KEYS'
PASTE-EACH-adbkey.pub-LINE-HERE
KEYS
chmod 640 /data/misc/adb/adb_keys
chown system:shell /data/misc/adb/adb_keys 2>/dev/null
restorecon /data/misc/adb/adb_keys 2>/dev/null

setprop ctl.restart adbd                            # apply now (and it auto-starts every boot)
echo "adb persisted: adb_enabled=$(settings get global adb_enabled) tcp=$(getprop persist.adb.tcp.port)"

The panel must be on Wi-Fi for the network route. From then on, adb connect <panel-ip>:5555 works from any pre-authorised machine, across reboots, with the vendor apps closed. Wiping /data or a factory reset clears adb_keys and adb_enabled, so run the script again afterwards.

Caution

The Developer options “Enable ADB” password is not a usable path, so do not try to compute it. The community recipe in issue 123 does not reproduce. Decompiling checkDevPassword in com.smartos.xinch.setting confirms its shape: base64(takeLast(ro.tuya.uuid,3) + takeLast(deviceId,3)) then takeLast(6), case-insensitive (or takeLast(ro.tuya.uuid,6) when deviceId is empty). But the deviceId it uses could not be matched to any readable identifier: ro.serialno, android_id and ro.tuya.key were all rejected on a live unit. The app’s logger is not logcat, so the expected value cannot be read on the device either. The worked example in that issue also has a typo (11a plus xia written as 11xia; it must be 11axia). Use the root method above, which makes the password irrelevant.

Danger

Disable the vendor com.smartos.xinch.* packages only as the very last step, after confirming adb is solid and you have a replacement for the hardware buttons. Disabling the hardware or settings apps before adb is reliable can lock you out. The panel app’s remote navigation actions (Back, Recents) and its button backlight and LED entities replace the vendor app’s functions.

Note

The vendor’s on-device apps were not a useful reverse-engineering source. com.tuya.devicetest is odexed (no dex in the APK), and com.smartos.xinch.hardware bundles the Tuya AVS (Alexa) SDK (libLibSampleApp.so, 17 MB) plus a key reader (libjnimain.so). The authoritative source is the device’s own self-documenting sysfs nodes.

WebView: update this first

The stock WebView is Chrome 83, far too old for a current Home Assistant frontend, so the dashboard stays blank or broken until you replace it. The recommended build is LineageOS System WebView 150 (armeabi-v7a), a current, maintained, vanilla Chromium engine. Prefer it over Cromite: Cromite patches Chromium’s autoplay content setting to block, which stops Home Assistant camera card (WebRTC) streams from starting without a tap, while LineageOS leaves autoplay allowed so camera streams start on their own.

The TPA10 has limited video decoder headroom inside WebView. Several visible 720p WebRTC cards can drop frames or leave one stream waiting for its first frame even though a single stream is healthy. If that happens, use lower-resolution substreams, fewer simultaneous autoplay cards, or snapshots that switch to live video on tap.

Download it from the mirror (stable URL):

https://github.com/panel-assistant/android/releases/download/webview-mirror/lineageos-webview-150.0.7871.63-arm.apk

Why a plain install does not work

The WebView is packaged as com.android.webview, so it must replace the system provider, and both obvious routes fail on this Android 11 panel:

• adb install -r is rejected with INSTALL_FAILED_UPDATE_INCOMPATIBLE: signatures do not match. Android only lets you update com.android.webview with an APK signed by the same key as the installed one, and each WebView vendor uses a different key. For the same reason, the panel app’s built-in WebView update cannot do this first swap: it installs through pm install, which the panel blocks. The swap below is a one-time manual step. Once LineageOS is in place, the panel app can apply later LineageOS updates itself, because they share a signer.
• The ROM’s allowlist accepts only com.android.webview, not the com.google.android.webview variant, so a Google build installs but is never selected.

Working method with root: replace the file and clear the signature lock

The panel is signature-locked but rootable: the app cannot su, but a shell can (adb shell su root <cmd>). The method drops the new APK into the system WebView slot and deletes its entry from the package database, so PackageManager registers it fresh on reboot, reading the new APK’s own signature with no conflict.

IP=<panel-ip>:5555
adb connect $IP
adb -s $IP shell su root id                           # confirm it prints uid=0(root)

# 1. push the new WebView, and back up the current WebView + package database first:
adb -s $IP push lineageos-webview-150.0.7871.63-arm.apk /data/local/tmp/wv-new.apk
adb -s $IP shell su root sh -c 'cp /product/app/webview/webview.apk /data/local/tmp/webview.bak;
                                cp /data/system/packages.xml /data/local/tmp/packages.xml.bak'

# 2. replace the system WebView APK (remount /product read-write first — verity must already be off;
#    a never-modified panel needs a one-time `adb root && adb disable-verity && adb reboot` beforehand):
adb -s $IP shell su root sh -c 'mount -o rw,remount /product;
    cp /data/local/tmp/wv-new.apk /product/app/webview/webview.apk;
    chmod 644 /product/app/webview/webview.apk; chown root:root /product/app/webview/webview.apk;
    restorecon /product/app/webview/webview.apk'

# 3. remove the single <package name="com.android.webview" …>…</package> element from packages.xml.
#    Do NOT hand-edit it — pull it, let a parser remove exactly that element, then push it back:
adb -s $IP shell su root sh -c 'cp /data/system/packages.xml /data/local/tmp/pkgs.xml; chmod 644 /data/local/tmp/pkgs.xml'
adb -s $IP pull /data/local/tmp/pkgs.xml packages.xml
python3 - <<'PY'
import xml.etree.ElementTree as ET
d = open('packages.xml', encoding='utf-8').read()
m = '<package name="com.android.webview"'
assert d.count(m) == 1, 'expected exactly one com.android.webview package'
s  = d.find(m); ls = d.rfind('\n', 0, s) + 1                      # start of that line
e  = d.find('</package>', s) + len('</package>'); le = d.find('\n', e) + 1  # end of its closing line
new = d[:ls] + d[le:]
ET.fromstring(new)                                                # abort if the result isn't valid XML
open('packages.xml', 'w', encoding='utf-8').write(new)
print('removed com.android.webview; XML still valid')
PY
adb -s $IP push packages.xml /data/local/tmp/pkgs.new
adb -s $IP shell su root sh -c 'cp /data/local/tmp/pkgs.new /data/system/packages.xml;
    chown system:system /data/system/packages.xml; chmod 660 /data/system/packages.xml;
    restorecon /data/system/packages.xml'

# 4. reboot — PackageManager registers the new WebView fresh:
adb -s $IP reboot

If anything goes wrong, revert with the backups from step 1: copy /data/local/tmp/webview.bak back over /product/app/webview/webview.apk and /data/local/tmp/packages.xml.bak back over /data/system/packages.xml (with the same chown, chmod and restorecon), then reboot.

Danger

The reported WebView version is wrong after this method, so do not trust it. Settings, WebView and adb shell dumpsys webviewupdate still show 83.0.4103.120, because a sideloaded SystemWebView stamps the OEM stock versionName and versionCode to clear the panel’s minimum-version gate and get selected. The actual engine is 150. Verify it by:

• User-Agent: open any “what’s my user agent” page on the panel; the UA contains Chrome/150.0.7871.63.
• The panel app: the :8888 status page and /api/v1/diag show engine Chromium 150.0.7871.63, because they read the UA, not the stamped package version.

A plain adb sideload does not work on this signature-locked panel. Cromite 147 remains in the mirror as a fallback, using the same procedure with a different APK.

LED

RGB LED: avsux driver (root helper daemon)

The front RGB LED is a single LED (avsux_info reports led type:[single] nums:[1]) on the leds_pwm_avs platform driver (device avsux), exposed at /sys/class/leds/avs-pwm-led/.

Danger

Writing custom_animation to avsux_select has been observed to reboot the panel. Use avsux_animation for colour, and treat avsux_select and custom_animation as read-only unless testing.

There is no app-accessible /dev node for the LED (compare the WF1589T’s /dev/ledjni), and the sysfs attributes are system:system, so an untrusted_app cannot write them. The panel app therefore uses a small root helper daemon (/system/bin/hapaneld-helper, running as root on a Unix socket); SocketLedController is the client. See the helper documentation.

avs-pwm-led sysfs attributes

Attribute	Permissions	Use
brightness	system:system rw	overall level 0 to 255
avsux_animation	system:system rw	safe colour or animation write
avsux_select	system:system rw	custom_animation[][0][0]:<dur_ms>:<RRGGBB>[,…≤12 slots]
avsux_firmware	r	lists named animations (bootanime, idle)
avsux_info	r	metadata (LED count and type)

Button backlight

/sys/class/leds/button-backlight/brightness is a monochrome PWM output, 0 to 255 (standard leds_pwm driver, device pwmleds). It is system:system 0664, so it is driven through the same hapaneld-helper daemon.

Sensors

Proximity is app-direct through SensorManager. Temperature, humidity and ambient light are root-only (input subsystem and I²C) and need the helper daemon.

Tip

The CHT8305 makes this panel a usable room temperature and humidity sensor for Home Assistant. The helper daemon reads it with its CHT8305 verb, an EVIOCGABS point read of the driver’s ABS_THROTTLE input axis that matches the temperature and humidity input devices by name. The panel app then offers two optional Room temperature and Room humidity sensors in Home Assistant (Configure, Diagnostics; off by default). An advanced Room temperature offset setting, or the profile’s sensors.room_temp_offset_c, corrects for the panel’s own warmth.

The TPA10’s time-of-flight sensor means proximity is genuinely distance-based, but the Android HAL quantises it. The panel app learns the live sensor’s endpoints and direction, then reports the same normalised proximity scale used on every supported panel rather than relying on a fixed device-specific cutoff.

Sensor chips and access paths

Sensor	Chip	Access
Proximity (time of flight)	Vishay VI5300 (i2c-3 0x6c, proximity_vi5300, 30 ms poll)	Android SensorManager TYPE_PROXIMITY, no root. The raw distance in mm on the driver’s I²C node (…/i2c-3/3-006c) needs root.
Temperature and humidity	CHT8305 (temperature_cht8305 at 3-0040, humidity_cht8305 at 3-0040-1)	Not in SensorManager; reports through the input subsystem on I²C, root only.
Ambient light	CG5256 (light_cg5256)	Not in SensorManager (root).

Buttons

The TPA10 has three classes of physical button, confirmed on the device with getevent:

• The four side buttons: adc-keys, standard KeyEvents mapped to F1 to F4, captured by the panel app’s accessibility key filter with no special path.
• The fifth (orange) button: an EV_SW switch, not a key, read through the root helper daemon’s evdev reader and sent to Home Assistant as an event.
• The pin-hole button (recessed, beside the USB-C port): not an Android input, so not available to Home Assistant.

Per-button detail

1. The four side buttons are adc-keys and send standard KeyEvents. They sit on the rk3566 SARADC (fe720000.saradc), device adc-keys1 (/dev/input/event7), scancodes 59 to 62. The stock Generic.kl maps them to F1 to F4, which become Android KEYCODE_F1 to KEYCODE_F4; the panel app captures them through its accessibility key filter. On a unit with su they can be remapped by editing /system/usr/keylayout/Generic.kl (for example to BRIGHTNESS_* or VOLUME_*).

2. The fifth (orange) button is a switch, not a key. On gpio-keys (/dev/input/event8) it reports EV_SW SW_MUTE_DEVICE (switch code 14), a latching event, not an EV_KEY. That is why no keylayout entry exists for it and Android accessibility never sees it, so the stock firmware leaves it dead. The panel app reads it through the root helper daemon’s evdev reader (WATCH /dev/input/event8, sw=true) and sends a Home Assistant event (KEYCODE_MUTE) on each toggle, validated end to end. This is stock behaviour, undocumented elsewhere at the time of writing.

3. The pin-hole button (recessed, beside the USB-C port) is not an Android input. It is absent from getevent, gpio-keys and dmesg, so Home Assistant cannot use it. Its electrical role has not been safely confirmed. Its placement and the rk3566 platform suggest a reset or boot-mode function, but there is no verified hold duration, factory-reset behaviour or Maskrom entry procedure. Do not press or hold it on the assumption that it provides a recoverable reflash path. Use the verified software-entered Loader route while Android still boots, and follow the limits in Firmware backup and restore.

Camera

GalaxyCore GC05A2 / GC5035, a 2592×1944 sensor. Android reports one camera at LIMITED hardware level, BACKWARD_COMPATIBLE only, Facing: Back, with no flash and no autofocus, through the legacy/0 provider (device@3.3).

Note

The firmware’s own feature flags are wrong about it: the panel declares android.hardware.camera.front while the HAL reports Facing: Back. Decide on the device profile and on what CameraManager actually enumerates, never on hasSystemFeature.

1280×720 is offered in all three formats, IMPLEMENTATION_DEFINED, YUV_420_888 and BLOB, so both preview and still-capture formats are available. The HAL advertises a one-frame stall for a 720p BLOB capture at 30 fps, but the panel app captures YUV_420_888 and compresses JPEG in software, so that figure does not measure the app’s snapshot cost. android.control.aeAvailableTargetFpsRanges offers only [15 30] and [30 30]: there is no locked 15 fps sensor mode, so a 15 fps stream comes from pacing the encoder, not from the sensor.

The only hardware H.264 encoder is OMX.rk.video_encoder.avc, served by the OMX IL HAL (this panel has a media.codec process and no Codec2 vendor service). It declares 176x144 to 1920x1088 at 16x8 alignment, a bitrate range reported as 1 bps to 10 Mbps, and four concurrent instances. There is no hardware HEVC encoder; the only HEVC entry is the software c2.android.hevc.encoder, shipped enabled="false".

Caution

Treat the vendor’s media_codecs_performance.xml figures as boilerplate, not measurement: the hardware and software AVC encoders report identical measured-frame-rate values at both 720×480 and 1280×720, which cannot be a real measurement. Assume 720p until you have measured otherwise on your own panel.

A panel showing camera cards is not idle. On a measured dashboard the panel app held two live OMX.rk.video_decoder.avc instances, so an encode session competes with existing decode work on the same Rockchip VPU.

The panel app can serve this camera as an experimental feature that is off by default. The Camera switch on the Camera card in Configure turns it on, with Resolution, Frame rate and Bitrate defaults (720p, 15 fps, 2000 kbps) and an Exposure bias. It then serves a video-only H.264 stream at rtsp://<panel>:8554/live and a still at GET /api/v1/camera/snapshot.jpg. Whenever the camera is open, the panel shows a red indicator that page content cannot cover. See the API reference for the stream and status details.

Caution

Do not put a Home Assistant camera card for this panel on this panel’s own dashboard. The panel would decode its own encode in a loop, on the same video engine, for no benefit.

Other silicon

Camera GalaxyCore GC05A2 / GC5035; audio codec ES7202 (a capture ADC; a usable microphone has not been verified); Goodix touch; rk808 and rk860 PMIC.

Access model summary

• LED and button backlight: root only (system:system sysfs), through hapaneld-helper.
• Proximity: app-direct (SensorManager).
• Temperature, humidity, light: root only (input subsystem and I²C), through the helper daemon.
• Buttons: the four side buttons are app-direct (KeyEvents through accessibility); the fifth orange button is an EV_SW switch read through the hapaneld-helper evdev watch; the pin-hole button is not an input.
